BITUMAT PVC - BMT W250 FDT

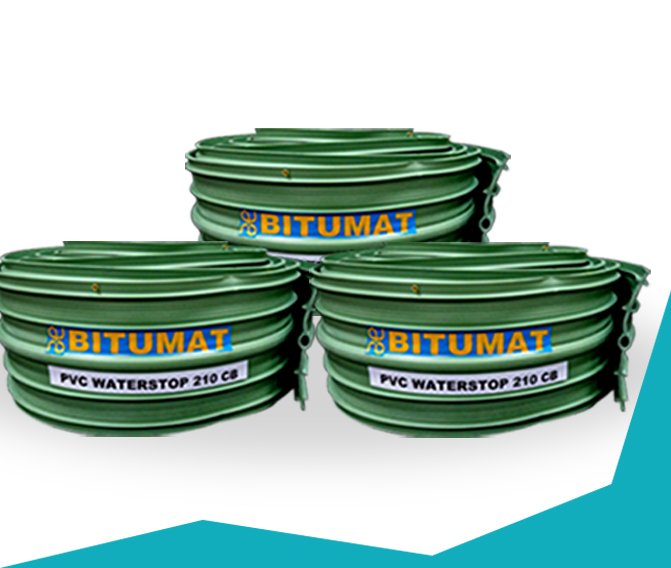

BITUMAT PVC WATERSTOPS are produced by melting and shaping mixtures obtained from Polyvinylchloride (PVC) resin, stabilizer, plasticizer, anti-oxidant and dyestuff in suitable temperature and pressure in Extruders.

Waterstop - PVC 250 FD PDF WATERSTOP BROCHURE

USER

BITUMAT PVC WATERSTOPS are used for providing water impermeability in expansioncontraction (structure) joint seen in concrete stuctures exposed to high & low water pressure and for preventing vibrations and deformations that would appear in concrete blocks.

OUTSTANDING FEATURES

Proven Profile - Solid fins promote better concrete compaction and simplifies site jointing. Flexible - Will accomodate movement during construction and service life Valve Action - Created by concrete shrinkage around fins. Grou-tite-fins - Promotes dense concrete and prevents loss of fines at stop-end shutter. Edge Flange - Provide positive anchorage for tying wires fastened through reinforced wiring holes. Moulded Transitions - Available to link with Bitumat external waterstops

Equipment

PVC Edge Tie Welding Jigs Unit various sizes Electric (110v or 220v) Unit Welding Knife Mild Steel Welding Knife Unit

Equipment by others

Fine tooth saw, wire brush, Stanley knife, 110v or 220v power source, blow lamp if nonelectrical mild steel knife is used.

Health and Safety

Fused site welded jointing of PVC waterstops can result in the liberation of hydrochloric acid fumes. In confined spaces forced ventilation must be provided or a suitable respirator used.

On open sites special precautions are not normally required but operators should avoid inhaling any fumes. Before using electric welding knife ensure that it is correctly earthed.
